Paddock Slabs
Paddock slabs are engineered to provide a durable and stable surface in high-traffic areas, offering excellent support for livestock and vehicles. Made from heavy-duty materials, these slabs can withstand substantial weight, ensuring a firm footing even in muddy conditions. Ideal for paddocks, stable yards, and feeding areas, they help reduce erosion and improve accessibility, keeping your grounds in top condition all year round.
Not sure how many to order? Use our Calculator
-
Estimated Delivery:Aug 03 - Aug 07
Paddock Slabs

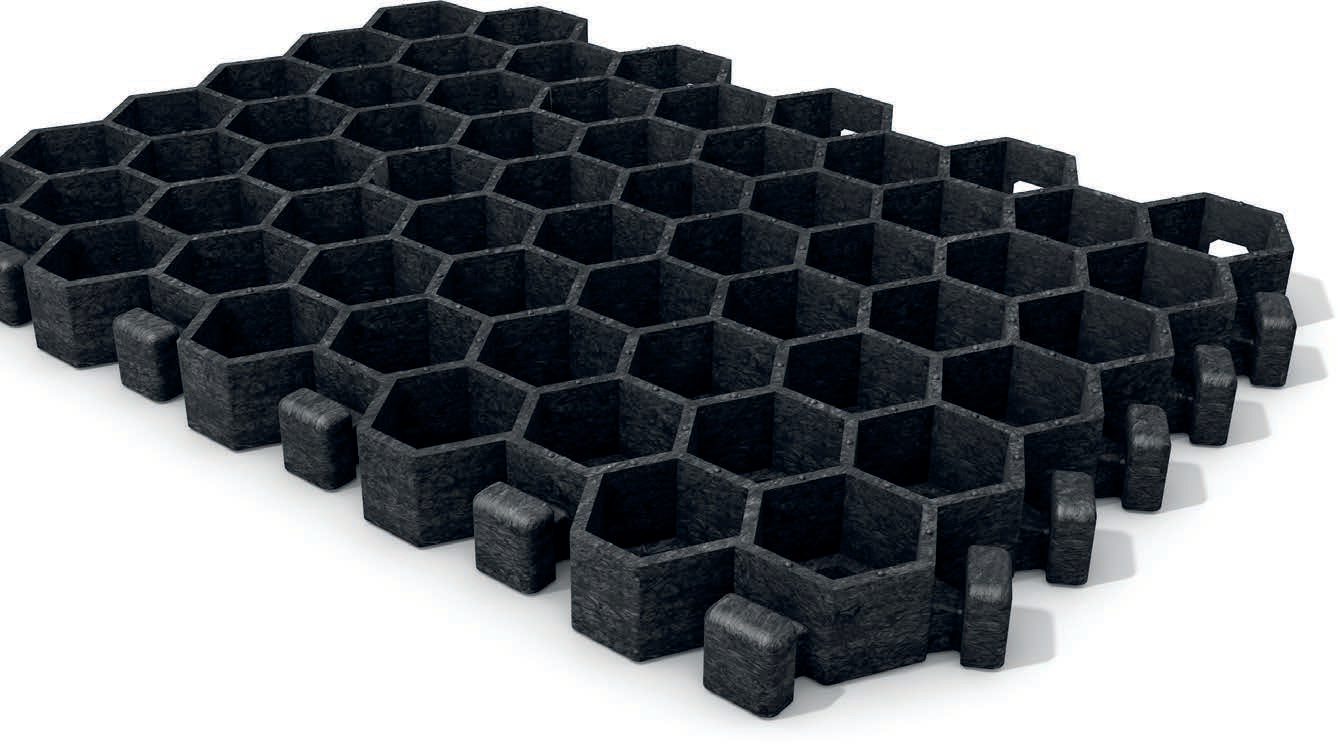

hanit® Paddock Slabs are a tough and effective free-draining ground stabilization system. As a LID-compatible permeable paving solution, Paddock Slabs have an open honeycomb design that combines strength with excellent drainage.
Paddock Slab is specifically designed and tested for horses. The cell wall is thick enough to support large breeds, yet the cell aperture is small enough for foal and pony hooves. Made of specially formulated hanit®, it cushions and supports the hoof while being strong enough for HGVs.
Paddock Slabs are weather-resistant and suitable for virtually any outdoor use — from footpaths and parking lots to paddocks, riding arenas* and feeding areas. The thick walls and reliable click-together design give exceptional resistance to heavy loads, impact, vibration and stress. They're extremely durable, hoof-friendly and strong enough for vehicles.
*Not suitable for arenas where jumping takes place.
How it can be used

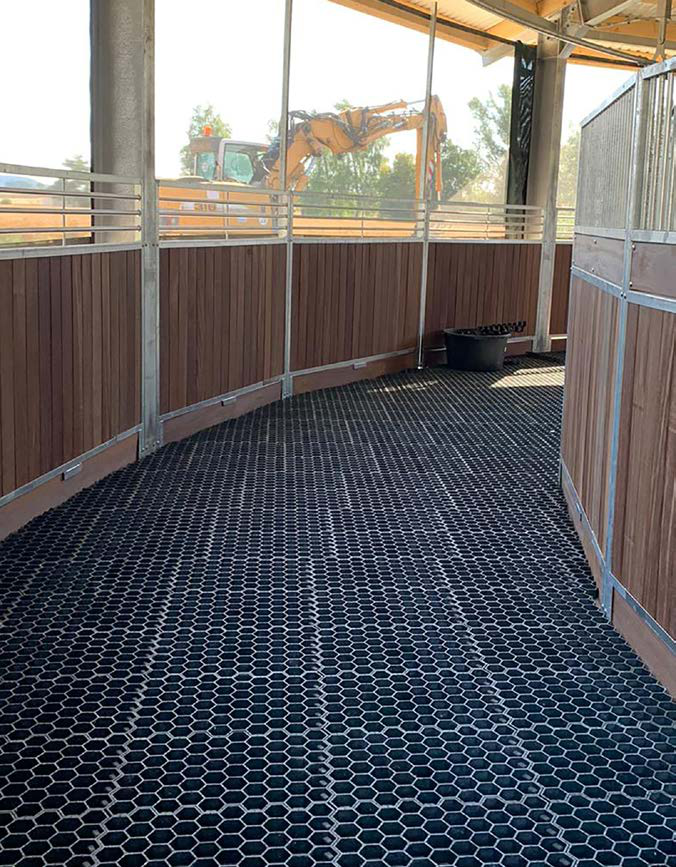

- As a stabilising layer with a sand tread surface in arenas, pens and walkers

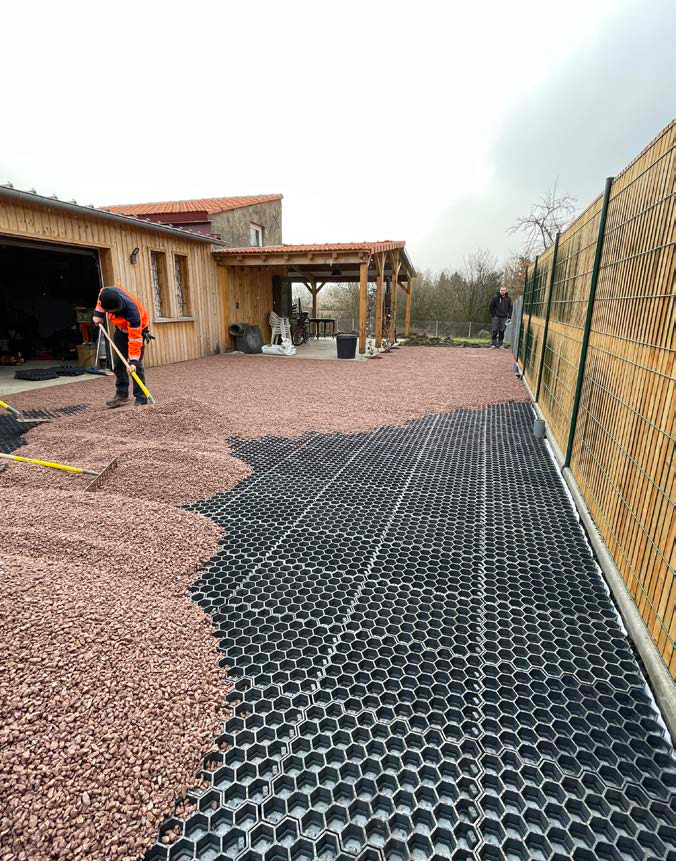

- In general access areas and horse box parking with a gravel fill
- In paddocks for mud prevention with a grass fill
- Like all stabilised areas, adequate drainage is the key to successful installation
Key features
- Made of specially formulated, horse-friendly hanit®
- Strong, stable, durable and free-draining
- Non-slip and ammonia-resistant
- Supports up to 1,000 tonnes/m² (extreme loading strength)
- High load capacity: 465 psi empty (73,090 lbs max per unit); 1,350 psi filled (228,300 lbs max per unit)
- Free-draining to prevent mud
- Frost and UV-resistant
- Quick and easy to install with a secure interconnecting/interlocking system
- Generous expansion capability
- Low maintenance
- 20-year warranty
- Hoof-friendly (cushions and supports the hoof; small cell aperture safe for foals and ponies)
Uses
Paddocks, footpaths, driveways, loading areas, riding arenas & schools, lunging rings, feed areas & watering places, general stable areas, mud control, parking & access for horse boxes, gateways.
Compliance
- Suitable for load class SLW 60 (per DIN 1072) / heavy-duty truck
- When used as grass or gravel reinforcement, complies with the (USA) Americans with Disabilities Act
- (UK reference: complies with Part M Building Regs and the Equality Act/DDA)
Specifications (US — already in inches)
- Length: 15¾"
- Width: 19⅝"
- Height: 1⅝"
- Weight per unit: 4.6 lbs
- Metric equivalent: 50 × 40 × 4 cm, 2.1 kg
Notes
- Coverage per slab: 2.15 ft²
- Pallet details: 312 grids, 1,435 lbs (26 pallets/load)
- Coverage per pallet: 671 ft²
- Approx. 5 slabs = 1 m²
- 1 m² of Paddock Slab is equivalent to ~6,000 recycled bottle tops (good sustainability stat)
Colors
- Black

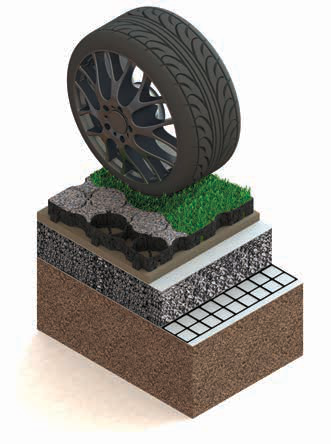

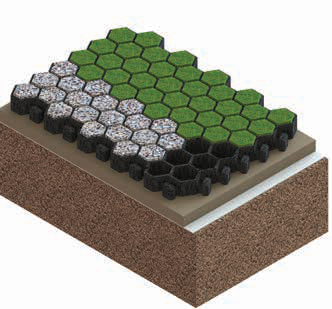

Installation overview
A typical Paddock Slab build, top to bottom:
- Gravel or grass (seeded) finish
- 40 mm Paddock Slab with 4:1 topsoil/sand fill
- 30 mm compacted sharp sand/soil
- Non-woven 100 g needle-punched geotextile
- 100–300 mm free-draining sub-base
For arenas with a tread layer:
6. 75–100 mm tread layer (sand, rubber, fleece, etc.)
7. 40 mm Paddock Slab filled with sharp sand
A technical guide is available on request.
Weight : 5 lbs
Dimensions : 19.69 × 15.75 × 1.58 in
