Paddock Rail System

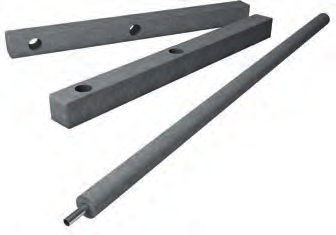

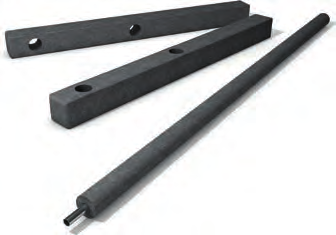

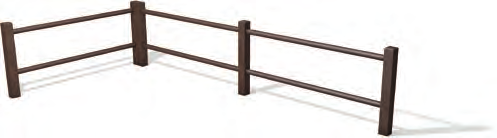

This is a simple two-part rail and barrier system made of just vertical posts and cross-bars. Installation: posts get concreted into the ground, then cross-bars push into pre-made recesses in the posts and get bolted into place. Corners or direction changes are handled with two end posts rather than needing special corner hardware.
Key Features
- Post dimensions: 12 x 12 x 150 cm
- Cross-bar dimensions: 8 x 225 cm
- Modular rail design
- Described as "one investment, long-term benefit"
- Marketed as ideal for animal enclosures
Recommended Uses

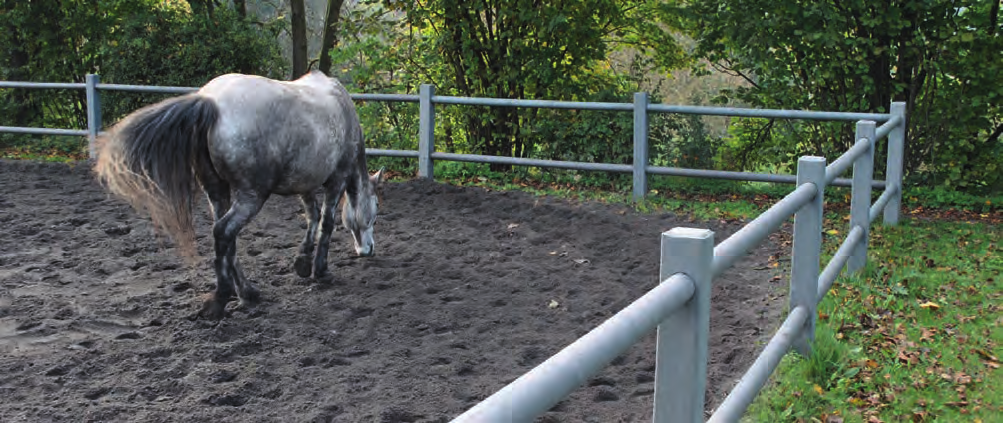

Animal enclosures generally — built for paddock/pasture fencing applications.
Safety Note
The brochure includes a caution: observe relevant local regulations if these are used as handrails (not just livestock fencing).
Product Specs Table
Field post
| Colour | Thickness (cm) | Width (cm) | Length (cm) | Weight (approx. kg) | Order No |
|---|---|---|---|---|---|
| Grey | 12.0 | 12.0 | 150.0 | 20.1 | RGA 120 150 |
| Brown | 12.0 | 12.0 | 150.0 | 20.1 | RBA 120 150 |
End post
| Colour | Thickness (cm) | Width (cm) | Length (cm) | Weight (approx. kg) | Order No |
|---|---|---|---|---|---|
| Grey | 12.0 | 12.0 | 150.0 | 20.1 | RGB 120 150 |
| Brown | 12.0 | 12.0 | 150.0 | 20.1 | RBB 120 150 |
Cross-bar (with reinforcement)
| Colour | ø (cm) | Length (cm) | Weight (approx. kg) | Order No |
|---|---|---|---|---|
| Grey | 8.0 | 225.0 | 12.0 | PGE 080 225 |
| Brown | 8.0 | 225.0 | 12.0 | PBE 080 225 |
Colors Available
Grey, Brown

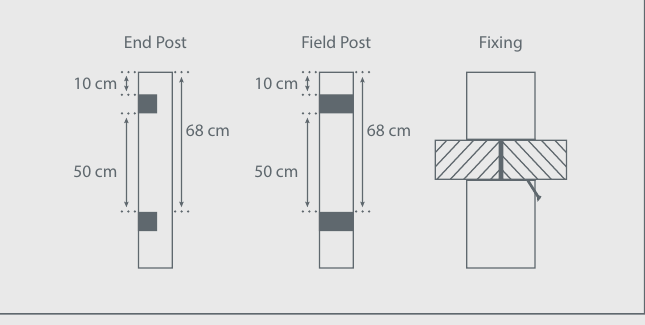

Installation Diagram Notes (from the technical drawing)
- End Post: 10 cm + 50 cm + 68 cm measurement breakdown shown in the cross-section
- Field Post: same 10 cm / 50 cm / 68 cm breakdown
- Fixing: shows the cross-bar fixing detail into the post recess
- Cross-bar has internal (steel) reinforcement, shown in a sectional view callout
Weight : 14.86
Dimensions : 19.69 × 19.69
